MB-H Series

The MB-H series provides a unique combination of high-speed and power in a small footprint. Highly productive with a high-speed spindle and reduced non-cutting time, the MB-H series is built on the Okuma Thermo-Friendly Concept which enables the machine to predict and counter thermal deformation, ensuring consistent accuracy. Each machine is expandable with modular ATC magazine and APC.

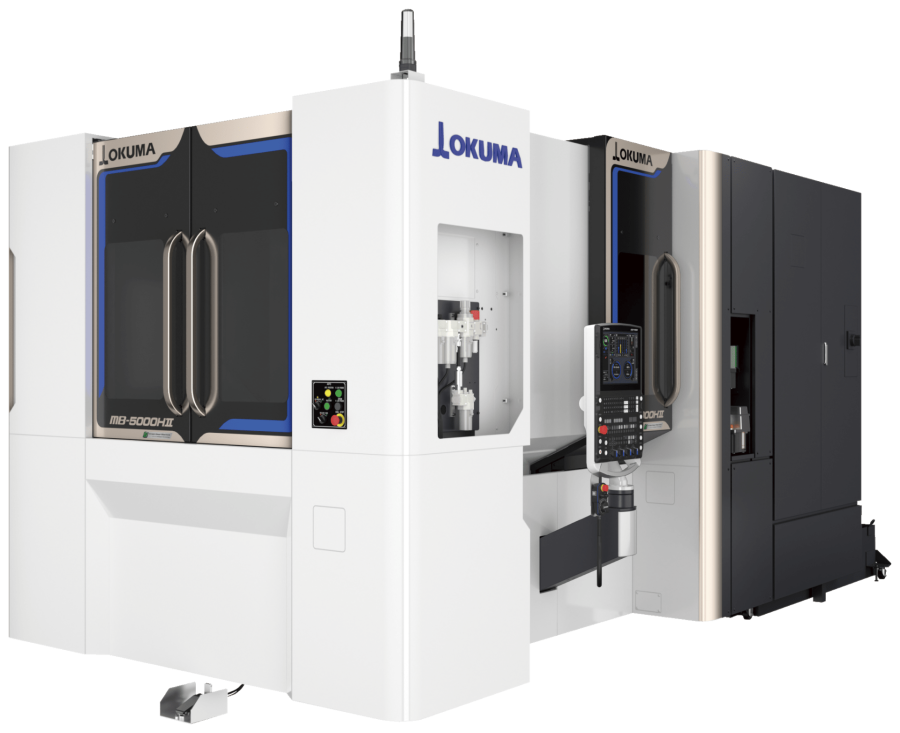

The MB-5000HII is a high-speed, thermally stable horizontal machining centre that offers quick acceleration, short tool changes, and high power to improve productivity. Compared to the previous model, this machine’s powerful cutting capabilities and high-speed automation increase productivity and reduce cycle time by 25 percent, while the 20 percent smaller footprint maximises valuable shop floor space.

TECHNICAL SPECIFICATIONS

MACHINES:

  • Table size [mm]
  • Axis travel [mm]
  • Spindle speed [min-1]
  • No. of tools
  • Motor [kW]

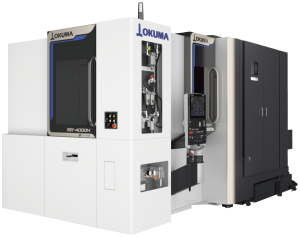

MB-4000H

  • Table size [mm] : 400 X 400
  • Axis travel [mm] : X: 560 / Y: 560 / Z: 625
  • Spindle speed [min-1] : 15,000 [20,000]
  • No. of tools : 48 [64], [110], [146], [182], [218]
  • Motor [kW] : 26/18,5 [30/22]

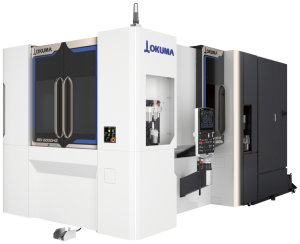

MB-5000HII

  • Table size [mm] : 500 X 500
  • Axis travel [mm] : X: 700 / Y: 760 / Z: 810
  • Spindle speed [min-1] : 15,000 [12,000], [20,000]
  • No. of tools : 48 [64], [100], [140], [220], [260], [300], [340]
  • Motor [kW] : 26/18,5 [30/22], [33/26]

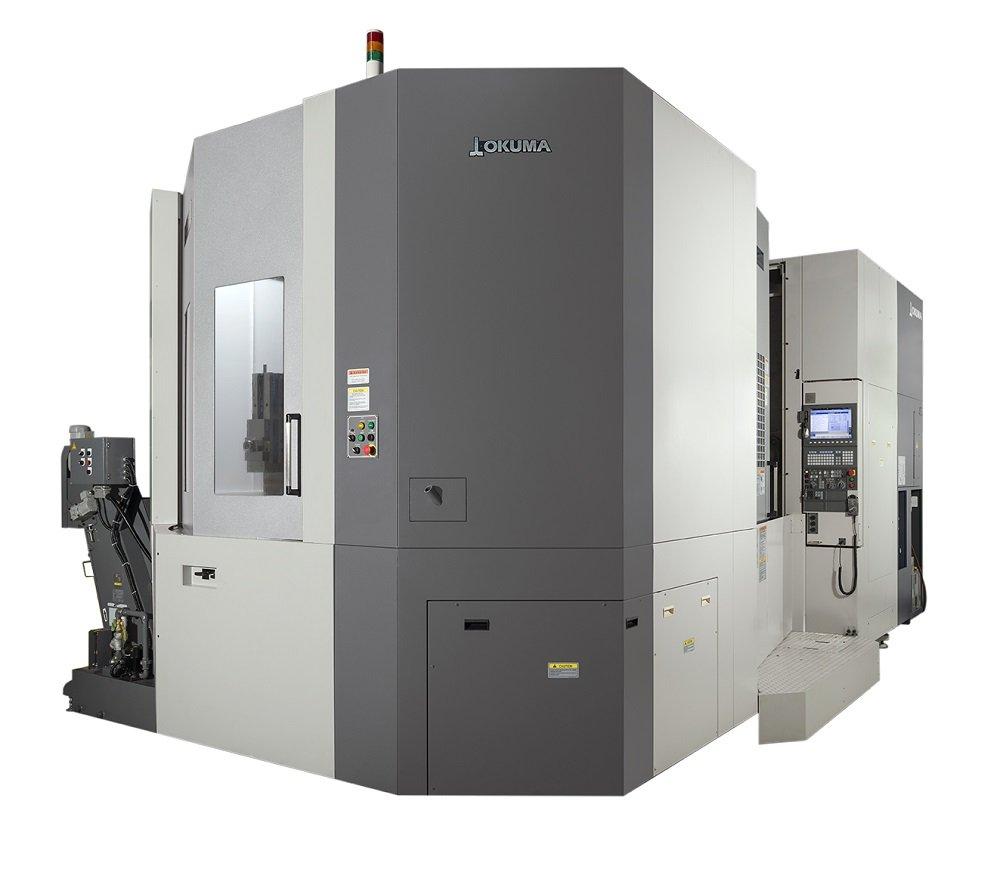

MB-10000H

  • Table size [mm] : 1,000 x 1,000
  • Axis travel [mm] : X: 1,400 / Y: 1,250 / Z: 1,250
  • Spindle speed [min-1] : 6,000 [12,000]
  • No. of tools : 40 [60], [100], [150], [200], [240], [320], [400]
  • Motor [kW] : 30/22 [40/37/30], [37/26]
