V80S

The V80S cuts cycle times and reduces handwork in large, complex specialty dies and molds.

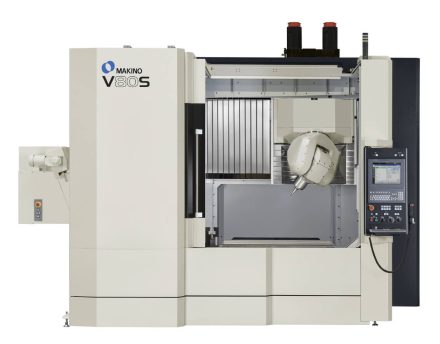

The V80S vertical machining center is a five-axis continuous processing platform designed for large die/mold part machining. It features a tilting/rotating spindle, insuring that the tool tip can be positioned to provide optimum contact with the workpiece – extending tool life, providing outstanding surface finishes and minimizing post machining hand processes.

Technical Specifications

Table: 1,300 mm x 1,000 mm
X: 1,300 mm Y: 1,000 mm Z: 600 mm

A Axis
60° (-30° to +30°)
C Axis
120° (-60° to +60°)
Spindle RPM
20,000 (HSK – A63)
Rapid Traverse
58,000 mm/min
Cutting Feedrate
40,000 mm/min
Maximum Workpiece
1,500 mm x 1,200 mm x 550 mm
Maximum Payload
2,500 kg
ATC Capacity
40 (120 opt)
Tool to Tool
8 sec
Maximum Tool Diameter
70 mm / 100 mm
Maximum Tool Weight
8 kg
Optional ATC Capacity:
Yes

Designed to meet stringent accuracy requirements, provide the finest finishes, maintain tight tolerance and increase productivity – the machine is ideal for high-speed finish machining of complex, multifaceted, 3-D contours typical of dies and molds.

In addition, the V80S is outfitted with the Makino Professional 6 control providing a stable, secure platform with reliable performance on the NC side, while providing an operator-friendly graphical user interface (GUI). This latest generation machine tool control offers large color touch-sensitive, on-screen, menu-driven applications. Icons provide “hot links” and quick access to critical information that may be required by the operator. In addition, the new control platform provides all of the functions typical of a PC (cut, paste, copy, find, replace, etc.) that are rarely available on a machine tool control. Advanced data management technology and Makino’s proprietary, next-generation Super Geometric Intelligence (SGI.5) servo control deliver the lowest cycle times achievable by reducing machining cycle times on dies, complex cavities and cores by as much as 40 percent when compared to most other control technologies.
