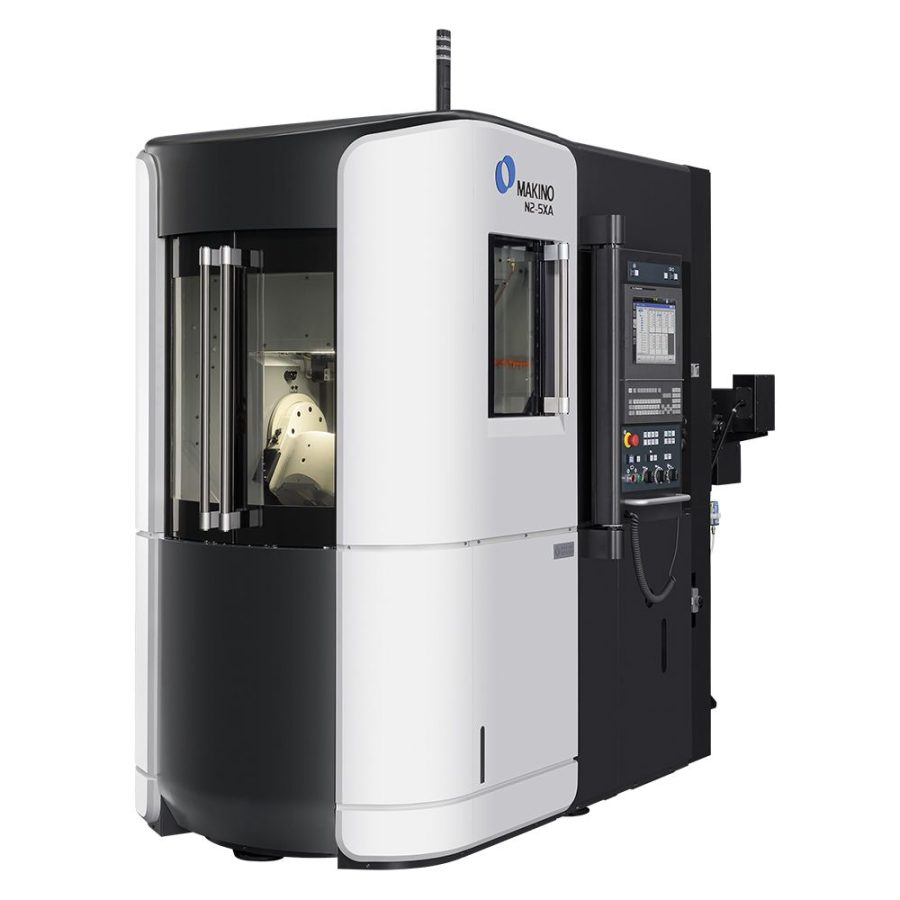

Horizontal Machining Center Designed for Medical Part Machining

The N2-5XA 5-axis horizontal machining center is specifically designed for high-productivity in near-net-shape components, making it ideal for medical part machining of orthopedic implant parts and high-volume die cast component production

Technical Specifications:

Pallet: 200 mm ø
X: 300 mm Y: 300 mm Z: 230 mm

A Axis
150° (-120° ~ +30°) Direct Drive
B Axis
360° Direct Drive
C Axis
n/a
Spindle RPM
20,000
Spindle Taper
HSK – A40
Rapid Traverse
42,000 mm/min (X&Y), 56,000 mm/min (Z)
Cutting Feedrate
32,000 mm/min
Maximum Workpiece
300 mm ø x 270 mm (with limitations)
Maximum Payload
150 kg
ATC Capacity
14 (21 opt)
Tool to Tool
2.5
Chip to Chip
4.3
Maximum Tool Diameter
50 mm
Maximum Tool Weight
2 kg

It’s twin direct-drive rotary axes are housed in a rigid trunion casting, providing ideal accessibility to the workpiece and opportunities to improve quality and throughput by consolidating operations.

The N2-5XA features a 20,000 rpm HSK-40A spindle that accelerates to maximum RPM in just 0.8 seconds. This spindle works in concert with the standard AI Contour Control and 1.4G Z-axis acceleration to quickly and accurately produce the complex geometries common in medical implant components. Consuming a mere 26 square-feet of floor space, the N2-5XA is a high-productivity “right-sized” solution to your small part manufacturing challenges.
