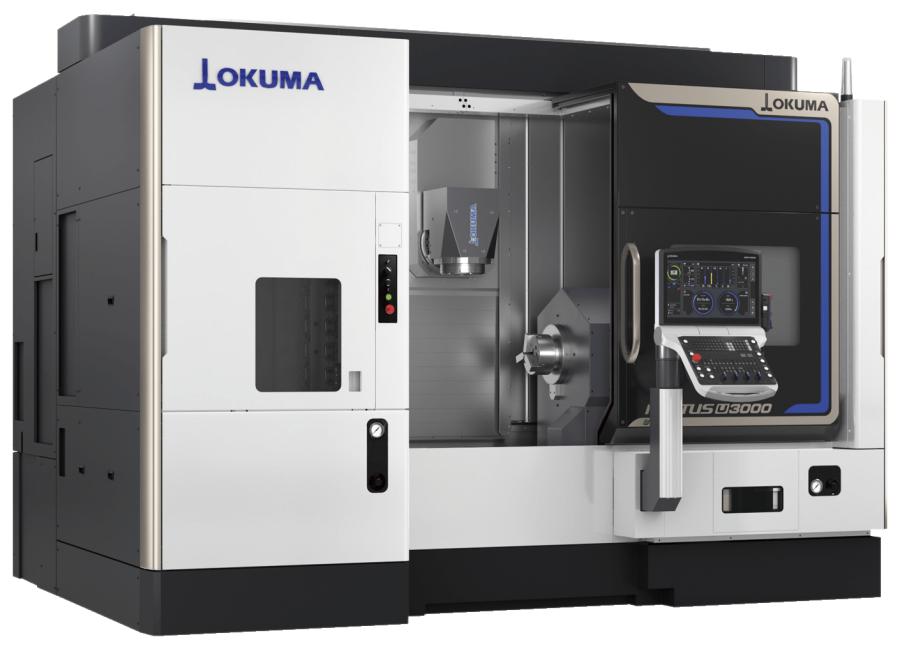

MULTUS-U3000-OSP-P500

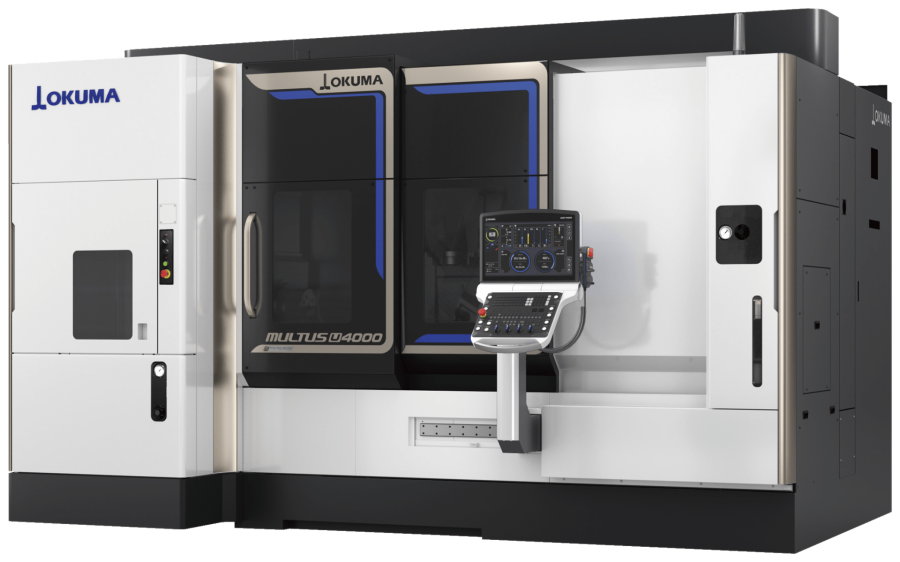

MULTUS-U4000-OSP-P500

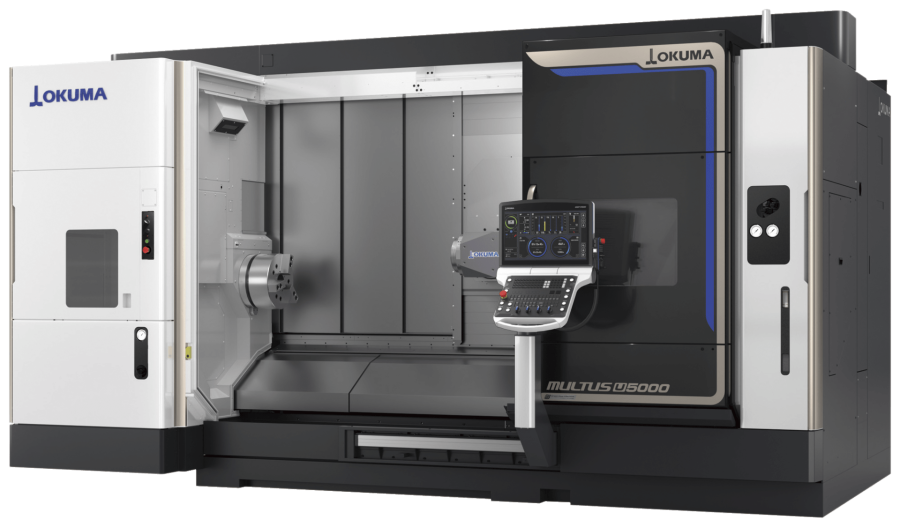

MULTUS-U5000-OSP-P500
MULTUS-U3000-OSP-P500
MULTUS-U4000-OSP-P500
MULTUS-U5000-OSP-P500

MULTUS U Series

Experiences from practice and extensive innovations determine the concept of the new multitasking machines MULTUS U3000, MULTUS U4000 and MULTUS U5000. Based on a solid orthogonal flat bed, they offer larger travels in the Y-axis, a second turret (option), higher drive capacities for the rotary (milling) tools as well as the latest OSP control with larger monitor (19″ screen diagonal) and ergonomically optimised operating panel.

Make an Enquiry

TECHNICAL SPECIFICATIONS

MACHINES:

  • Max. turning diameter [mm]
  • Max. turning length [mm]
  • Spindle speed [min-1]
  • No. of tools
  • Motor [kW]
  • Features

MULTUS U3000

  • Max. turning diameter [mm] : 650
  • Max. turning length [mm] : 1,000, 1,500
  • Spindle speed [min-1] : 4,200, [5,000]
  • No. of tools : 40 [80], [120], [189]
  • Motor [kW] : 22/15
  • Features : W, 2S, 2SW, ATC

MULTUS U4000

  • Max. turning diameter [mm] : 650
  • Max. turning length [mm] : 1,500, 2,000
  • Spindle speed [min-1] : 3,000, [4,200]
  • No. of tools : 40 [80], [120], [180]
  • Motor [kW] : 22/15, [32/22]
  • Features : W, 2S, 2SW, ATC

MULTUS U5000

  • Max. turning diameter [mm] : 650
  • Max. turning length [mm] : 1,500, [2,000], [3,000]
  • Spindle speed [min-1] : 3,000
  • No. of tools : 40, [80], [120], [180]
  • Motor [kW] : 37/30
  • Features : W, 2S, 2SW, ATC
