MULTUS B II Series | NCMT

MULTUS B II Series

MULTUS-B300II-OSP-P500

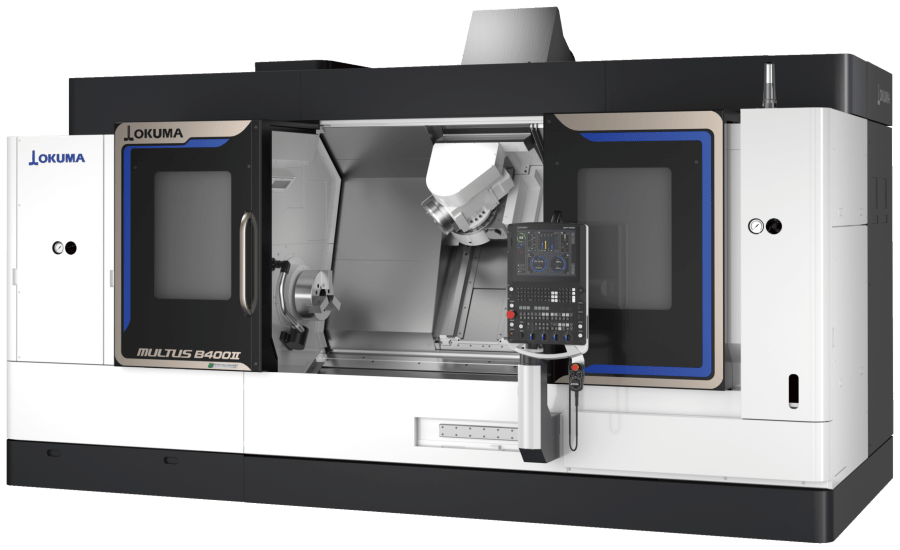

MULTUS-B400II_open

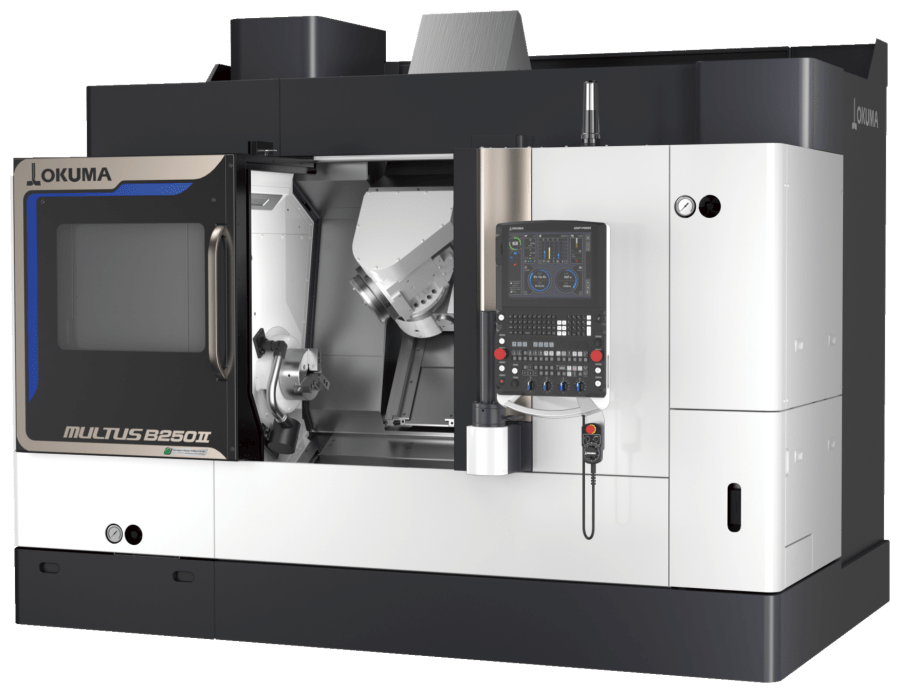

MULTUS-B250II_open

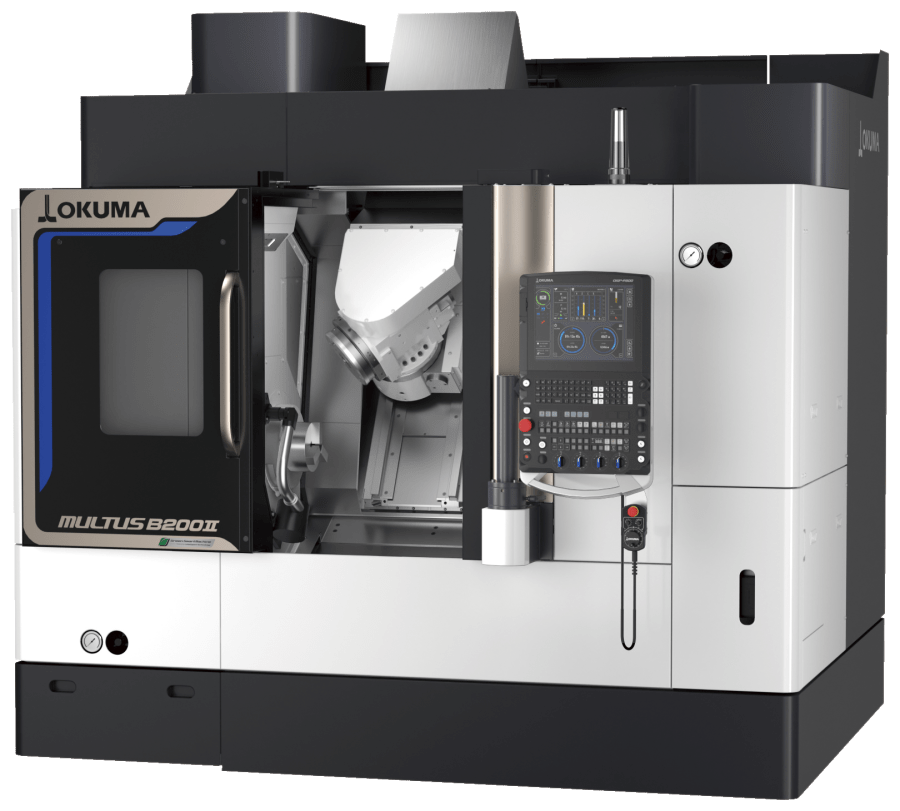

MULTUS-B200II_open
MULTUS-B300II-OSP-P500
MULTUS-B400II_open
MULTUS-B250II_open
MULTUS-B200II_open

MULTUS B II Series

The Okuma MULTUS BII series machines are general purpose multi-function CNC lathes that are designed to reduce set-up time by virtually eliminating repetitive fixturing to improve accuracy and keep non-cutting time to a minimum. They feature the industry’s first Collision Avoidance System software. Combined with Okuma’s OSP control, this software can run the entire machining simulation and catch potential collisions before they create scrap. Thermal-friendly construction assures high accuracy, even in the most complex applications. Options include the W version with sub-spindle, designed to hand the part from one spindle to the other to complete milling and turning operations without changing the part.

TECHNICAL SPECIFICATIONS

MACHINES:

  • Max. turning diameter [mm]
  • Max. turning length [mm]
  • Spindle speed [min-1]
  • No. of tools
  • Motor [kW]
  • Features

MULTUS B 200II

  • Max. turning diameter [mm] : 600
  • Max. turning length [mm] : 550 [750]
  • Spindle speed [min-1] : 6,000 [5,000]
  • No. of tools : 20 [40], [60]
  • Motor [kW] : 11/7.5 [22/15]
  • Features : W, ATC

MULTUS B 250II

  • Max. turning diameter [mm] : 600
  • Max. turning length [mm] : 750
  • Spindle speed [min-1] : 5,000
  • No. of tools : 20 [40], [60]
  • Motor [kW] : 22/15
  • Features : W, ATC

MULTUS B 300II

  • Max. turning diameter [mm] : 630
  • Max. turning length [mm] : 900
  • Spindle speed [min-1] : 5,000 [3,800]
  • No. of tools : 20 [40], [60], [120]
  • Motor [kW] : 15/11 [22/15]
  • Features : W, ATC

MULTUS B 400II

  • Max. turning diameter [mm] : 710
  • Max. turning length [mm] : 1,500 [2,000]
  • Spindle speed [min-1] : 3,800 [2,800]
  • No. of tools : 20 [40], [80], [120]
  • Motor [kW] : 22/15 [30/22]
  • Features : W, ATC
