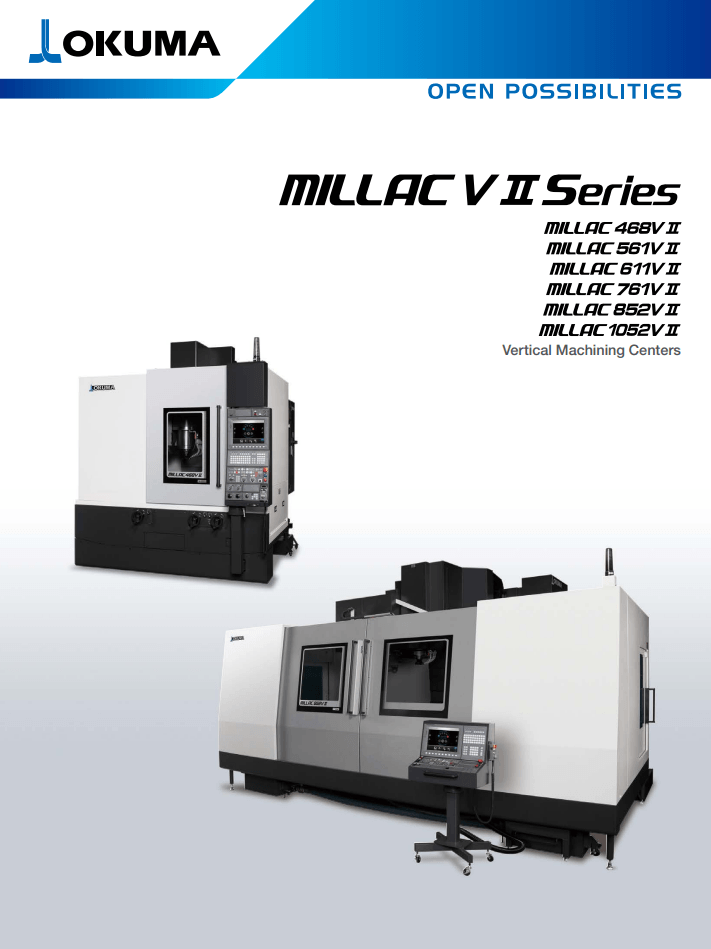

MILLAC VII Series

The MILLAC VII series of vertical machining centres has high machining capacity with a large range of travel. The highly rigid construction allows for powerful, high-speed, heavy-duty cutting. The main spindle, equipped with a variable speed gear head and large diameter spindle bearings, can perform heavy-duty cutting and rapid machining with large torque from low to high speeds.

TECHNICAL SPECIFICATIONS

MACHINES:

  • Table size [mm]
  • Axis travel [mm]
  • Spindle speed [min-1]
  • No. of tools
  • Motor [kW]

MILLAC 468VII

  • Table size [mm] : 1,050 x 460
  • Axis travel [mm] : X: 820 / Y: 460 / Z: 450
  • Spindle speed [min-1] : 6,000 [15,000]
  • No. of tools : 20 [30]
  • Motor [kW] : 18,5/11 [22/18,5], [26/18,5]

MILLAC 561VII

  • Table size [mm] : 1,300 x 560
  • Axis travel [mm] : X: 1,050 / Y: 560 / Z: 520
  • Spindle speed [min-1] : 6,000 [10,000], [12,000]
  • No. of tools : 20 [30], [40]
  • Motor [kW] : 15/11 [22/18,5]

MILLAC 611VII

  • Table size [mm] : 1,600 x 610
  • Axis travel [mm] : X: 1,300 / Y: 610 / Z: 560
  • Spindle speed [min-1] : 4,000 [6,000], [12,000], [15,000]
  • No. of tools : 20 [30], [42]
  • Motor [kW] : 15/11 [22/18,5], [26/18,5]

MILLAC 761VII

  • Table size [mm] : 1,800 x 720
  • Axis travel [mm] : X: 1,540 / Y: 760 / Z: 660
  • Spindle speed [min-1] : 4,000 [6,000], [10,000], [12,000], [15,000]
  • No. of tools : 36 [54]
  • Motor [kW] : 18.5/15 [22/18.5]

MILLAC 852VII

  • Table size [mm] : 2,200 x 850
  • Axis travel [mm] : X: 2,050 / Y: 850 / Z: 750
  • Spindle speed [min-1] : 4,000 [6,000], [10,000], [12,000], [15,000]
  • No. of tools : 36 [54]
  • Motor [kW] : 18.5/15 [22/18.5]

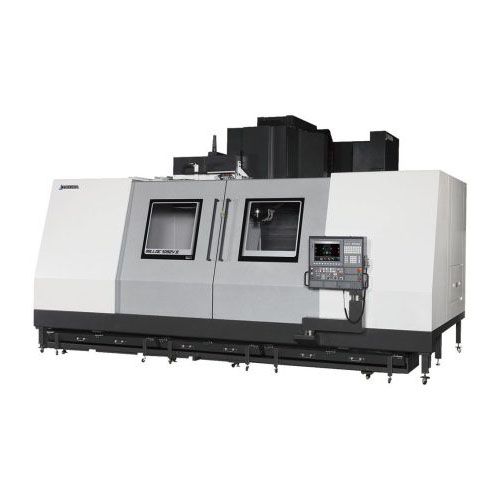

MILLAC 1052VII

  • Table size [mm] : 2,200 x 1,050
  • Axis travel [mm] : X: 2,050 / Y: 1,060 / Z: 800
  • Spindle speed [min-1] : 4,000 [6,000], [10,000], [12,000], [15,000]
  • No. of tools : 36 [54]
  • Motor [kW] : 22/18.5 [26/18,5]
