MCR Series

Okuma’s “double-column machining centre” is a brand that has always met the expectations and quality standards of machine shop leaders by delivering on their basic performance requirements like high rigidity and accuracy, ease of use and better environmental performance as a matter of course. In addition to being the face of the Okuma brand, all of our machines incorporate the determination and will to support global manufacturing.

TECHNICAL SPECIFICATIONS

MACHINES:

  • Table size [mm]
  • Distance between columns [mm]
  • Axis travel [mm]
  • Spindle speed [min-1]
  • No. of tools
  • Motor [kW]
  • Features

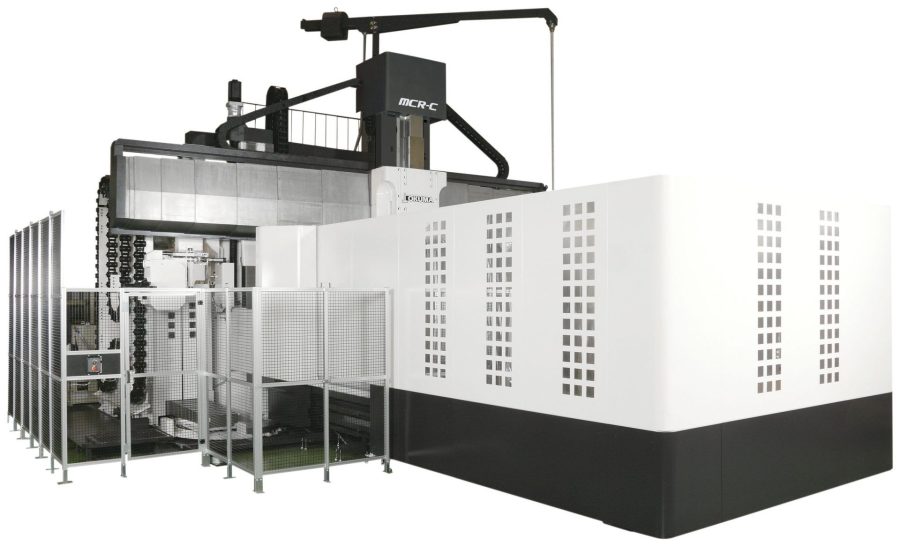

MCR-C

  • Table size [mm] : 1,500 x 3,000 to 3,000 x 12,000
  • Distance between columns [mm] : 2,650 to 3,650
  • Axis travel [mm] : X: 4,200 / Y: 3,200 / Z: 1,050 to X: 12,200 / Y:4,200 / Z:1,250
  • Spindle speed [min-1] : 4,000 [6,000], [10,000]
  • No. of tools : 50 [80], [100], [120], [180], [240], [360]
  • Motor [kW] : 45/37 [37/30]
  • Features : APC, AAC

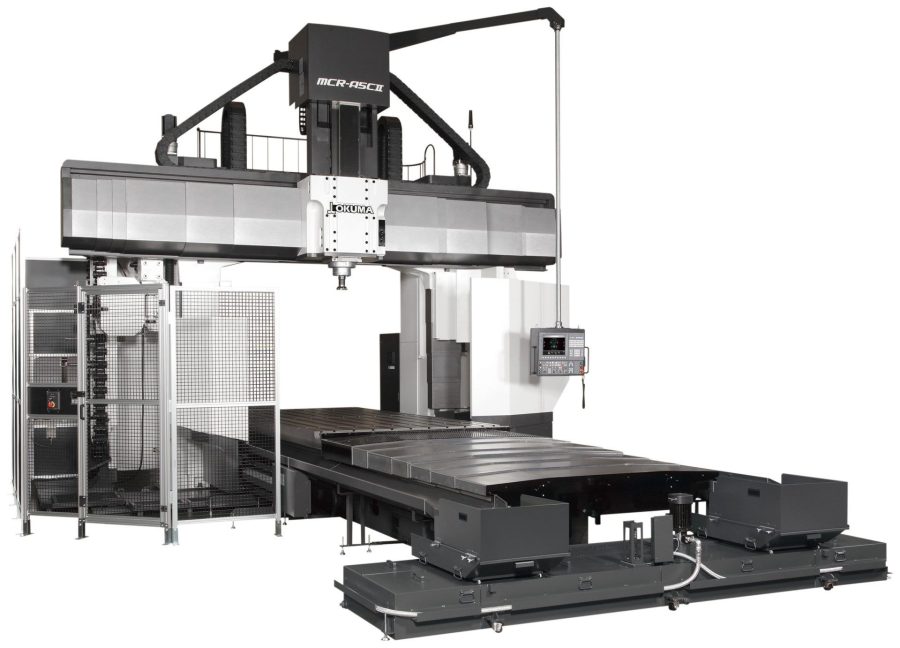

MCR-A5CII

  • Table size [mm] : 1,500 x 3,000 to 3,000 x 12,000
  • Distance between columns [mm] : 2,150 to 3,650
  • Axis travel [mm] : X: 3,200 / Y: 2,600 / Z: 800 to X: 12,200 / Y:4,100 / Z:1,200
  • Spindle speed [min-1] : 4,000 [6,000], [10,000]
  • No. of tools : 50 [80], [100], [120], [180], [240], [360]
  • Motor [kW] : 26/22
  • Features : APC, AAC

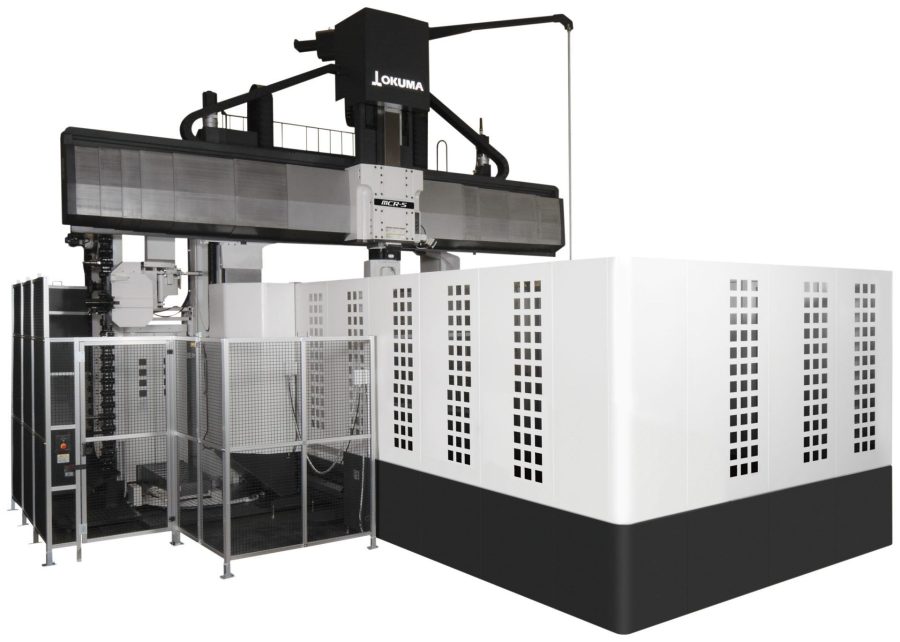

MCR-S

  • Table size [mm] : 2,000 x 4,000 to 2,500 x 6,500
  • Distance between columns [mm] : 2,650 to 3,150
  • Axis travel [mm] : X: 4,200 / Y: 3,200 / Z: 800 to X: 6,700 / Y:3,700 / Z:800
  • Spindle speed [min-1] : 10,000 [20,000]
  • No. of tools : 50 [80], [100], [120], [180], [240], [360]
  • Motor [kW] : 26/22
  • Features : APC, AAC

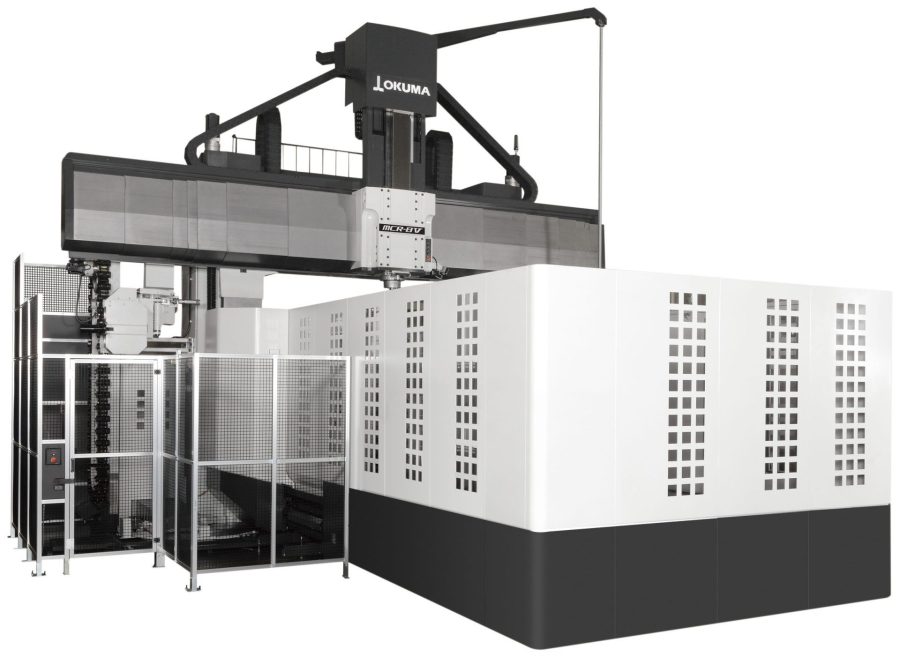

MCR-BV

  • Table size [mm] : 1,500 x 3,000 to 3,000 x 12,000
  • Distance between columns [mm] : 2,150 to 3,650
  • Axis travel [mm] : X: 3,200 / Y: 2,600 / Z: 800 to X: 12,000 / Y:4,100 / Z:1,200
  • Spindle speed [min-1] : 4,000 [6,000], [8,000], [10,000], [20,000]
  • No. of tools : 50 [80], [100], [120], [180], [240], [360]
  • Motor [kW] : 43/37
  • Features : APC, AAC
