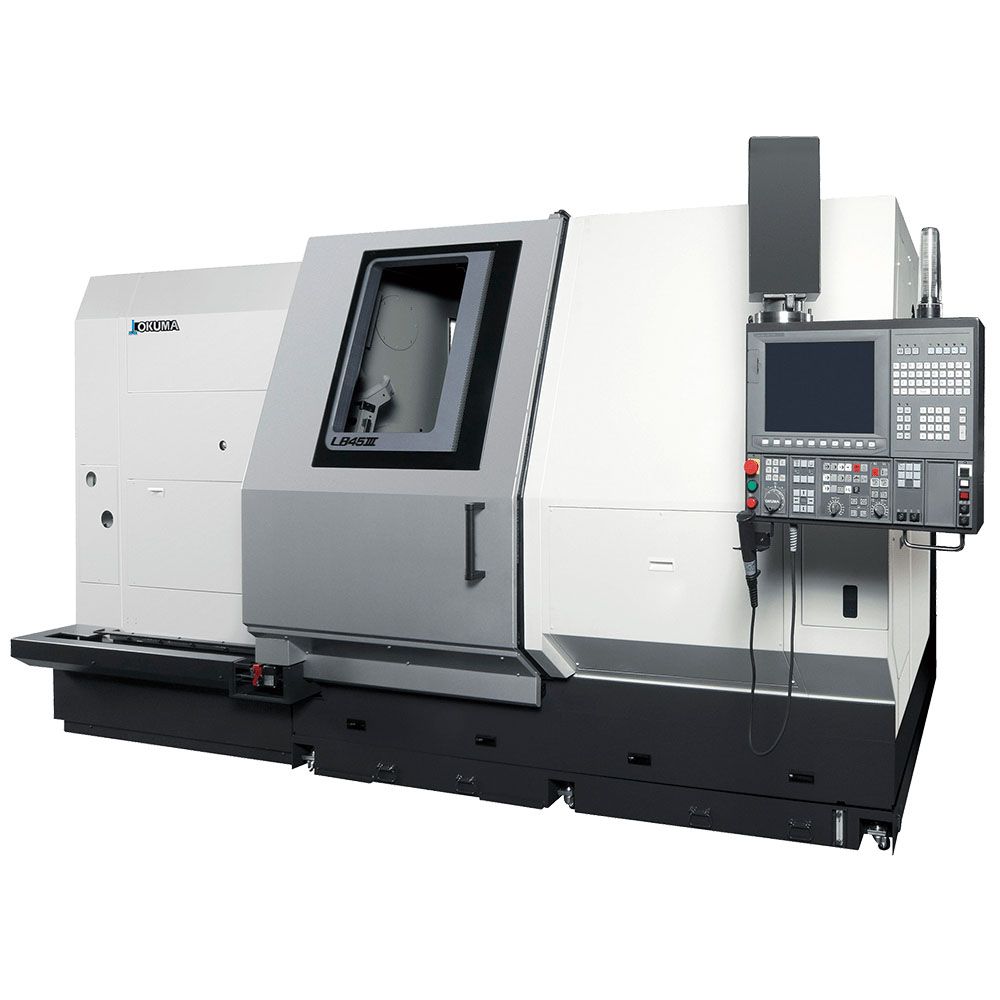

LB45III

Creating large parts such as the threaded pipes and long shafts required by the oil and agriculture industries demands a lathe that is built to not only accommodate massive material but also to handle it with precision. The LBIII series does just that. With Okuma’s strong base casting at the foundation, the LB35III and LB45III boast some of the longest available beds, allowing for large diameter machining in a variety of bore sizes. What it gains in size it never loses in power. The LBIII series maintains Okuma standards for optimum torque and precision regardless of machine dimension. Fast motion from end to end ensures accuracy while a low RPM extends the machine’s life and finishing capabilities. With powerful, robust ball screws the LBIII series is able to generate slideway movement to both axes, increasing both cutting speed and feed rates.

Categories: , ,

Technical Specifications

[ ] Optional

Max. turning diameter [mm]
660
Max. turning length [mm]
750, 1,000, 2,000, 3,000, 4,000
Spindle speed [min-1]
900, [2,400], [2,800]
No. of tools
12
Motor [kW]
37/30, [45/37], [50/40], [60/50]
Features
L, M, MY

Download Brochure

Please download the latest brochure for more information & full technical specification
