GENOS M Series

Based on the proven technology of the MB-V series, the GENOS M series of CNC vertical machining centers offers Okuma value at an economical and affordable price. Thermally stable, accurate, and rigid, these machines provide high productivity and profitability. In other words, Affordable Excellence. Equipped with Okuma’s industry leading OSP Control, these environmentally-friendly vertical machining centers have the power and flexibility to deliver results time after time.

Make an Enquiry

TECHNICAL SPECIFICATIONS

MACHINES:

  • Table size [mm]
  • Axis travel [mm]
  • Spindle speed [min-1]
  • No. of tools
  • Motor [kW]
  • Features

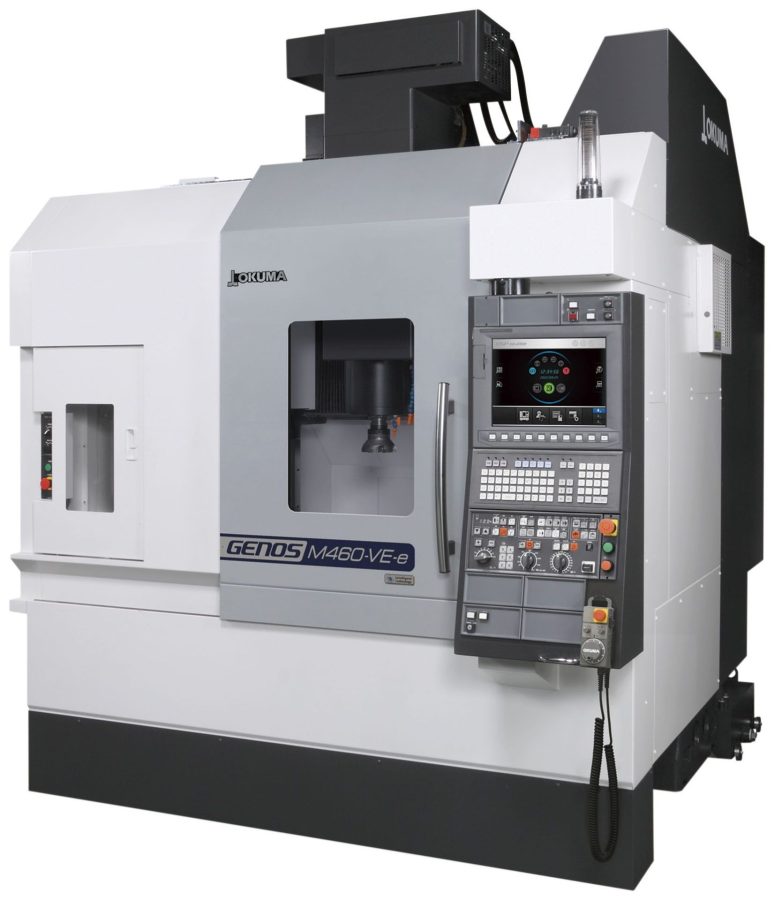

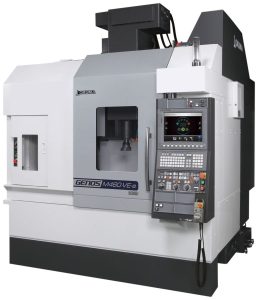

GENOS M460-VE-e

  • Table size [mm] : 1,000 x 460
  • Axis travel [mm] : X: 762 / Y: 460 / Z: 460
  • Spindle speed [min-1] : 15,000
  • No. of tools : 32
  • Motor [kW] : 22/18,5
  • Features : Connectable with Standroid

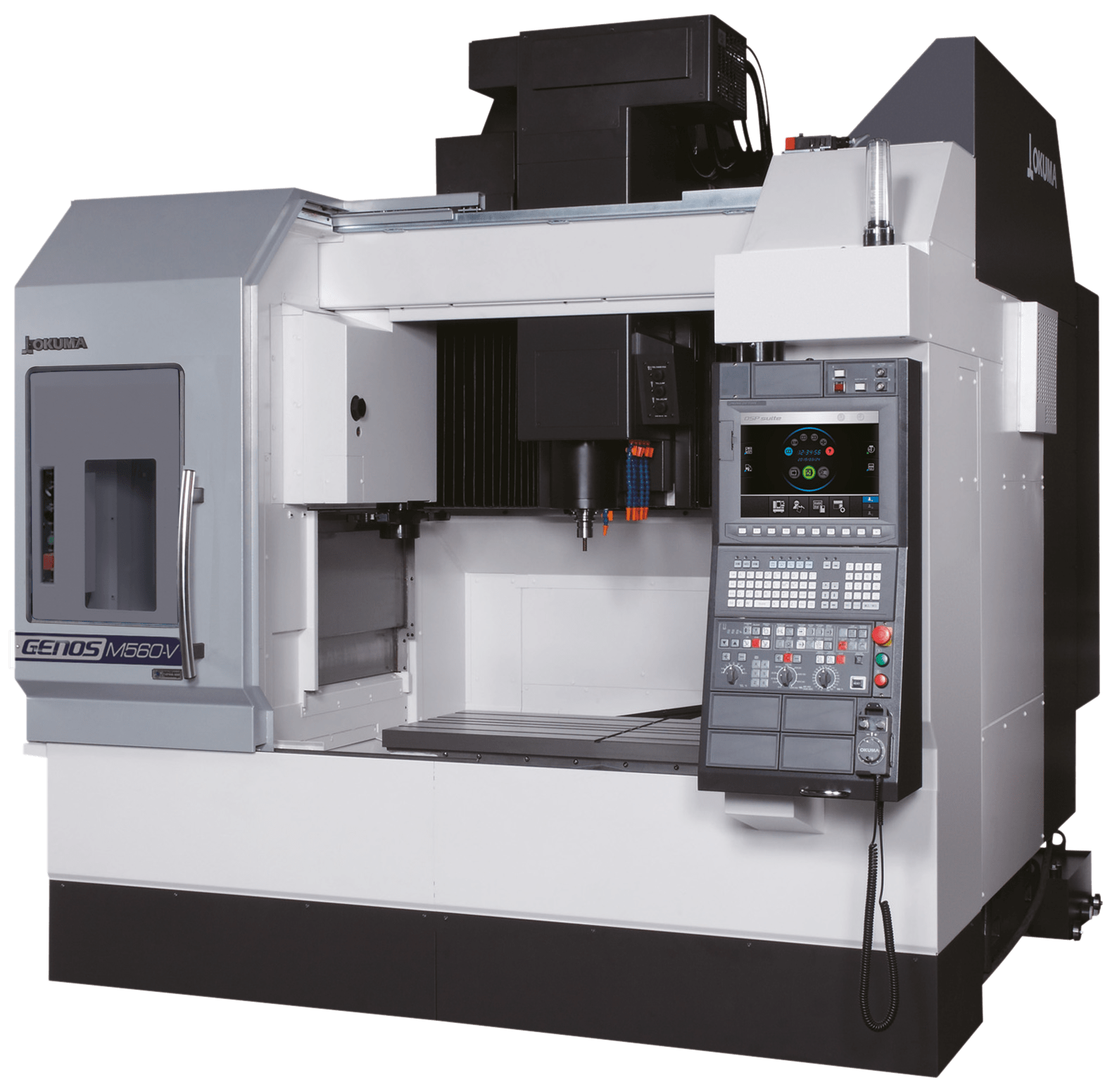

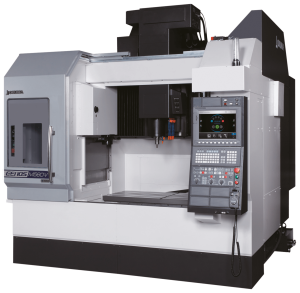

GENOS M560-V-e

  • Table size [mm] : 1,300 x 560
  • Axis travel [mm] : X: 1,050 / Y: 560 / Z: 460
  • Spindle speed [min-1] : 12,000, [15,000]
  • No. of tools : 32
  • Motor [kW] : 22/18,5
  • Features : Connectable with Standroid

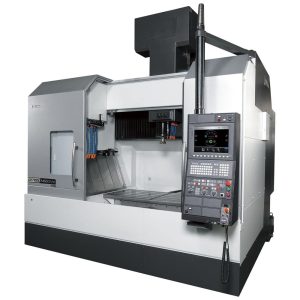

GENOS M660-V-e

  • Table size [mm] : 1,530 x 660
  • Axis travel [mm] : X: 1,500 / Y: 660 / Z: 660
  • Spindle speed [min-1] : 12,000, [15,000]
  • No. of tools : 32
  • Motor [kW] : 15/11
  • Features : 22/18,5

BROCHURES

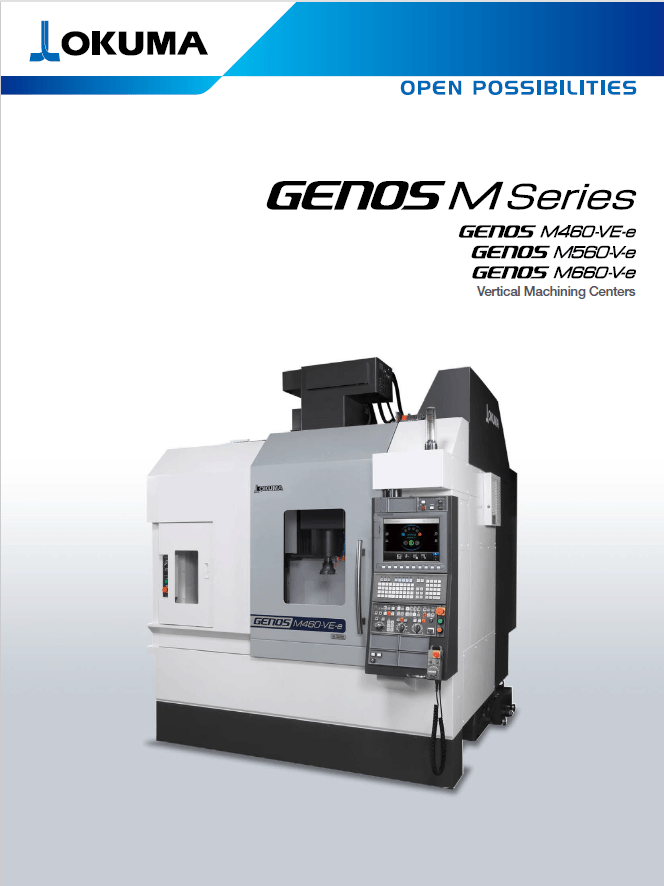

Brochure Cover
Download Brochure
