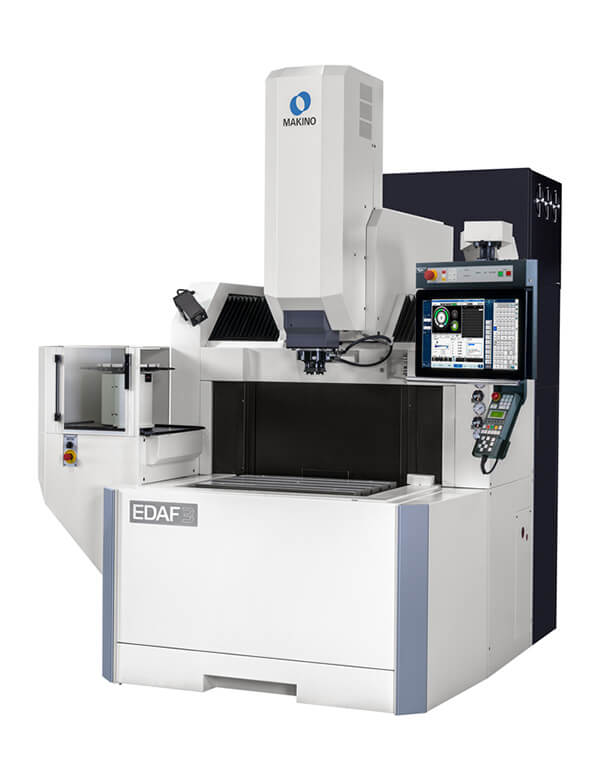

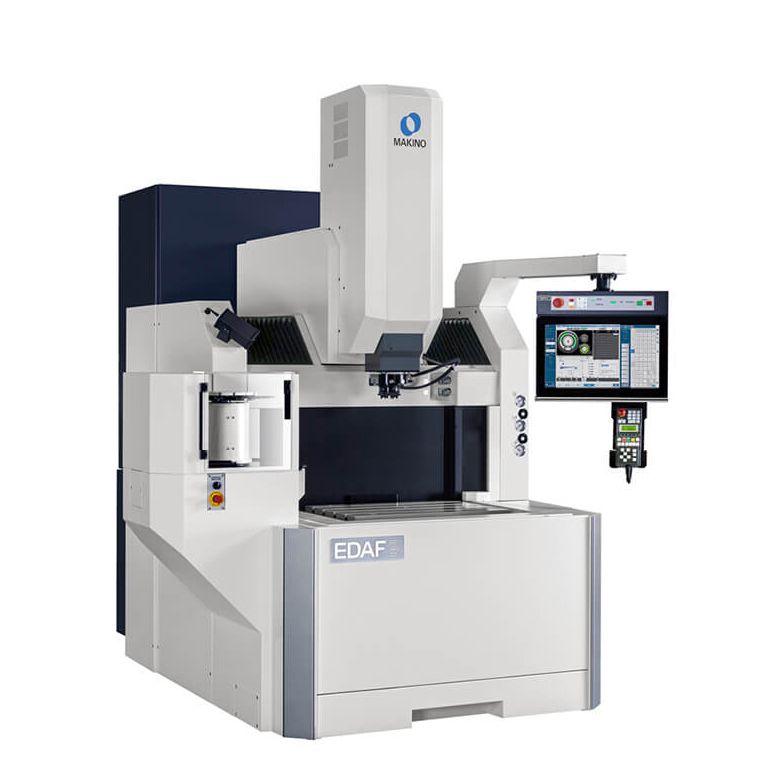

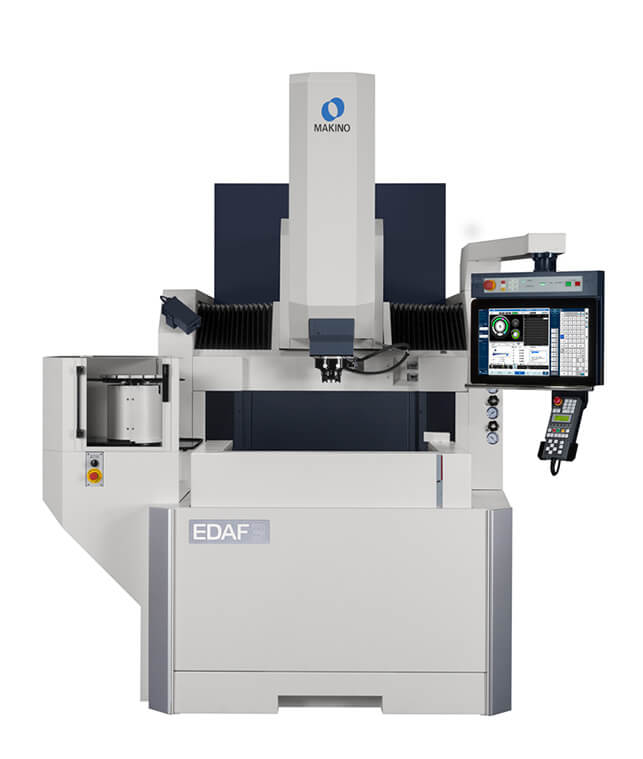

EDAF3

The EDAF3 machine expands upon the excellent capability and performance of the EDAF2 by offering larger X/Y/Z strokes to accommodate additional or larger work pieces.

The EDAF3 retains the same rigid and precise structure as the EDAF2, and integral thermal cooling of the Y- and Z-axis cast components is utilized for thermal stability and long-term sustained accuracy. The dielectric reservoir is built in to the base casting of the machine to improve thermal stability and also minimize the machine’s footprint.

Work tank access is unrestricted on the EDAF3 with a programmable, three-sided drop-tank system, which simplifies operation, ATC (automatic tool changer) and automation integration for greater unattended machining time. The operator has an outstanding vantage point of the machine during operation and can effortlessly unload, load and set up new jobs with the drop tank in the fully lowered position, which drops below the worktable level. The machine’s stationary worktable design can also be configured to provide additional depth to the work tank with the 50mm (2.0”) and 100mm (4.0”) table-down configuration options. The standard fire extinguisher and U/V sensor systems provide safety, protection and confidence for hours of unattended operation.

Categories: , ,

Technical Specifications

Table: 700×500
X: 450 mm Y: 351 mm Z: 351 mm

Tank Size
850×650×400

The EDAF3 uses the latest Hyper-i control system interface that delivers efficient and productive results while bringing new levels of user-friendly operation to the shop floor. The Hyper-i control contains many intelligent, intuitive and interactive functions that are streamlined to assist the operator in every step of the machining process. It also enables easy access and selection of power settings, such as HyperCut, SuperSpark™ IV and ArcFree technologies, to produce the most accurate results with the fastest-possible cycle time.

Download Brochure

Please download the latest brochure for more information & full technical specification
