V22

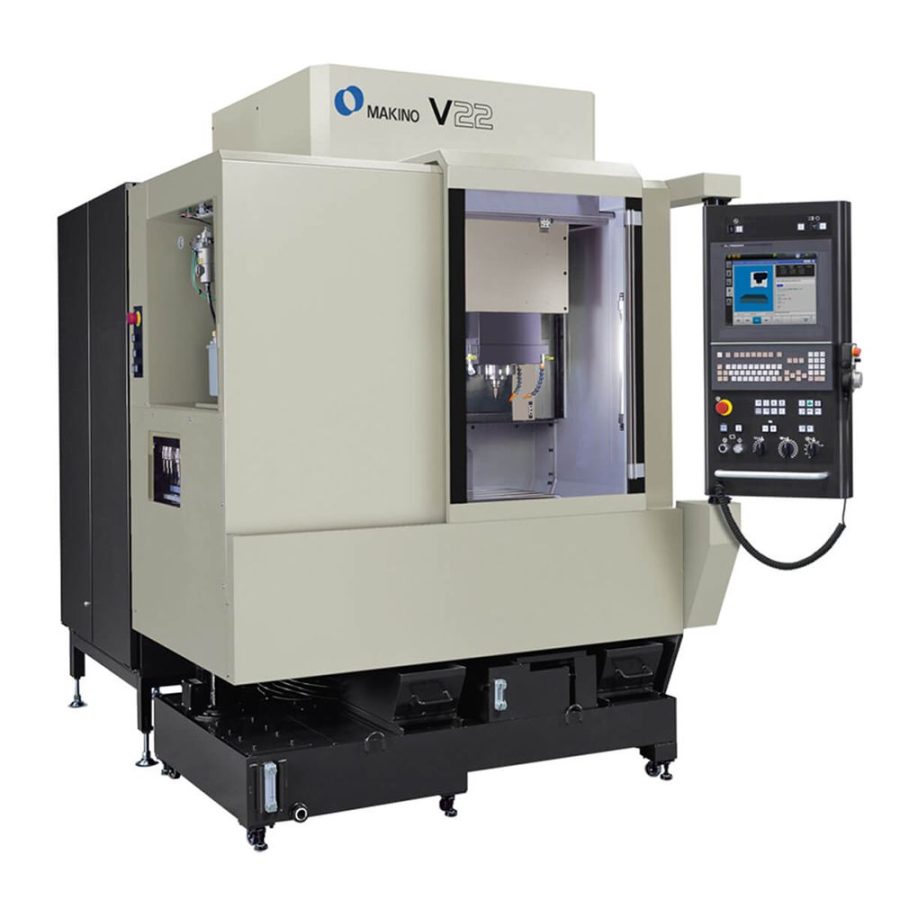

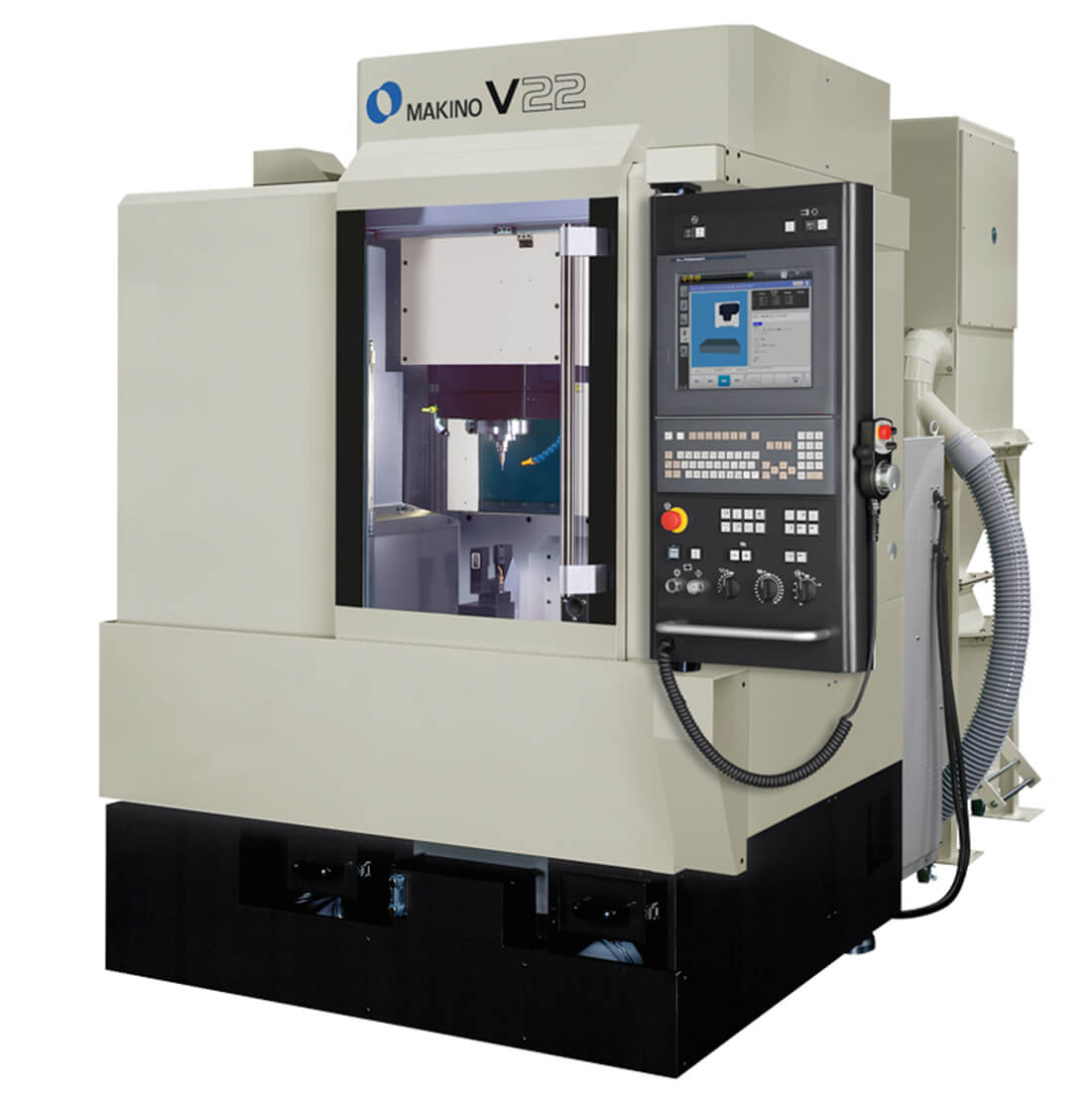

V22 Precision Machining Center

The V22 precision machining center is designed to eliminate vibration, rotational deflection and thermal distortion to ensure precision, accuracy, reliability and excellent stability. Designed to machine complex materials, including ceramics, intricate cores and cavities, the V22 precision machining center offers a standard 11.3-hp continuous 40,000-rpm spindle that is complemented by Makino’s patented core-cooling and under-race lubrication system.

Machine construction features integrally casted slideways and no overhangs, providing excellent rigidity and dampening characteristics. The rapid traverse allows for fast cutting feeds, which boosts productivity by reducing out-of-cut time and increasing metal-removal rates.

Technical Specifications

Table: 450 x 350 mm
X: 320 mm Y: 280 mm Z: 300 mm

Spindle RPM
40,000
Spindle Taper
HSK-E32
Rapid Traverse
20,000 mm/min
Cutting Feedrate
10,000 mm/min
Maximum Workpiece
450 x 475 x 200 mm
Maximum Payload
100 kg
ATC Capacity
30 (60 opt)
Maximum Tool Diameter
32 mm
Maximum Tool Weight
0.5 kg
Optional ATC Capacity:
Yes

The a500Z accommodates workpieces of up to Ø24.8” (Ø630mm) x 19.9” (500mm) high, with payload weights up to 880 pounds (400kg).  The X- and Y- strokes are 28.7” (730mm) and 29.5” (750mm) respectively, with the Z- stroke ranging from 19.7” – 27.6” (500mm – 700mm), depending on the rotary axes positioning.  Both rotary tables are of the direct drive type, with unlimited 360° movement on the B-, and 180° on the innovative ‘slant style’ C-axis unit.  This allows a full range of workpiece positioning ranging from the pallet top sitting horizontal to the spindle centerline to parallel to the spindle centerline, or anywhere in between these two extremes.  As has long been Makino’s hallmark, all axes on the a500Z have closed loop active temperature control standard, providing not only the superior dimensional control that is inherent to this design, but also extended component life even in the most demanding production environments.  With rapid rates for all linear axes of 2,362 inches per minute (60 meters per minute), and a B-axis rotation rapid rate of 45,000 degrees per minute, this agile platform allows for highly efficient machine movements.

The a500Z’s standard 14,000 RPM high power spindle offers output capabilities of 49.6 HP (37 kW) peak power, and 223 ft-lbs (303 N-m) peak torque, making is ideal for wide ranging material applications.  The optional 20,000 RPM high speed spindle is offered for customers utilizing primarily small diameter tools in high speed machining applications.  Tool changer magazine sizes range from the standard 60 tool capacity ring type unit, all the way up to a 313 tool matrix type magazine.

The standard automatic pallet changer on the a500Z greatly increases machine utilization, allowing workholding fixture tending on one pallet while the other pallet’s workpiece is being machined.  Since the APC is fully integrated into the core of the a500Z, it offers both unparalleled operation ease and system reliability.

The a500Z comes standard with our Fanuc based Pro-6 CNC control, featuring standard features such as a user-friendly touch screen interface, advanced tool data management, and our patented Makino Super Geometric Intelligence (SGI.5) high speed machining control system.  The Makino a500Z – the industry’s newest standard bearer in the complex production parts machining arena!
