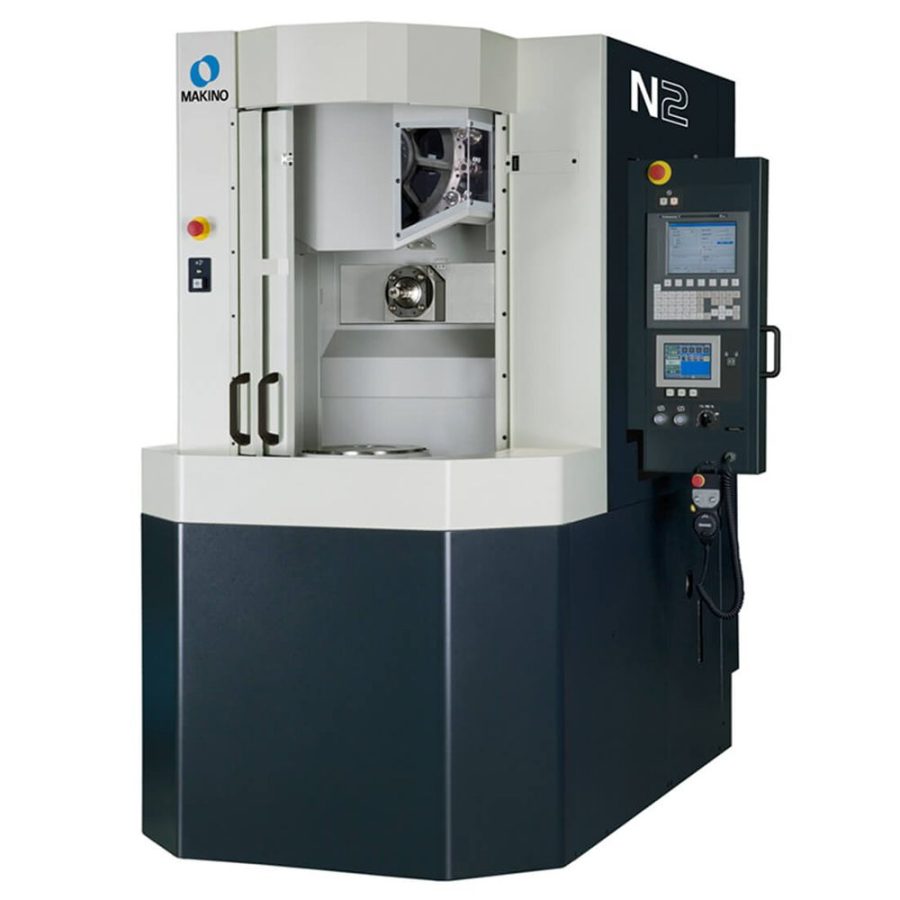

N2

The N2 provides a highly productive automated machining solution for small part production applications.

The N2 is a 4-axis horizontal machining center that delivers high-productivity machining capabilities in a compact design that requires a mere 26 square-feet of floor space.

Technical Specifications

Pallet:
300 mm ø
X: 300 mm Y: 300 mm Z: 230 mm

B Axis
360° Direct Drive
Spindle RPM
20,000
Spindle Taper
HSK – A40
Rapid Traverse
42,000 mm/min (X&Y), 56,000 mm/min (Z)
Cutting Feedrate
32,000 mm/min
Maximum Workpiece
400 mm ø x 400 mm
Maximum Payload
150 kg
ATC Capacity
14 (21 opt)
Tool to Tool
2.5
Chip to Chip
4.3
Maximum Tool Diameter
50 mm
Maximum Tool Weight
2 kg

Key N2 design features work in concert to slash non-cutting times:
•  300mm direct drive 4th axis completes 90° rotations in just 0.65 seconds
•  Spindle acceleration to a 20,000 rpm maximum in 0.8 seconds
•  Responsive Z-axis acceleration of 1.4G

Productivity and throughput of common drilling and tapping operations are up to 40 percent faster on the N2 compared to traditional 400mm machines. Efficient chip / coolant management and an automation ready design make the N2 the “right-sized” solution for small high-volume parts production.
