MCR-S

MCR-S

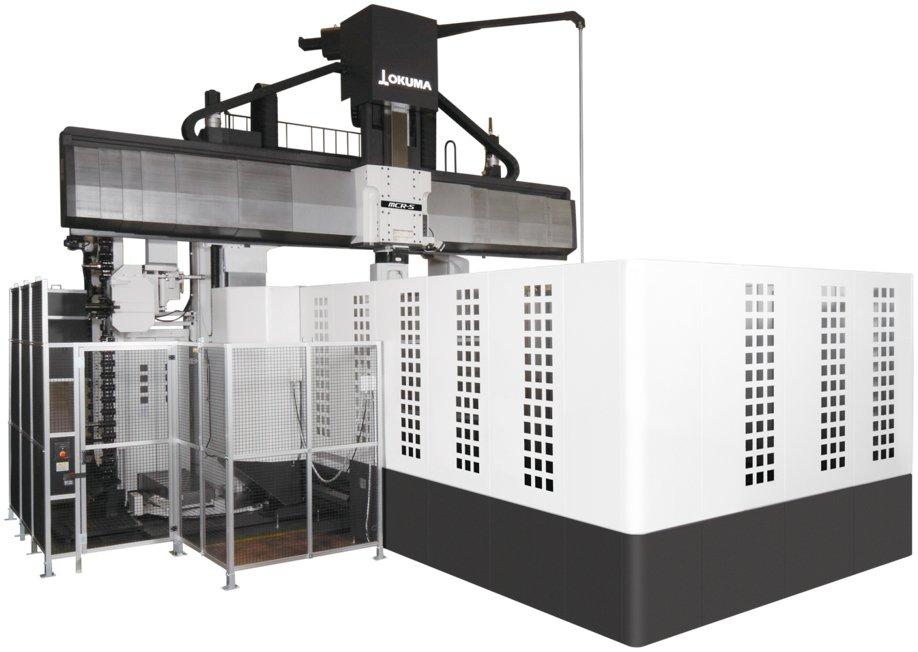

The MCR-S is a high-speed, high-quality double column machining centre that offers outstanding dimensional accuracy and surface quality for press die manufacturing. The exceptionally rigid spindle delivers powerful, 5-axis cutting on a thermally stable machine that provides efficient and accurate machining of large components. The machine’s structural design achieves fastest-class continuous feed rates and reduces cycle time by 25 percent compared to previous models.

Categories: , ,

Technical Specifications

[ ] Optional

Table size [mm]
2,000 × 4,000 to 2,500 × 6,500
Distance between columns [mm]
2,650 to 3,150
Spindle speed [min-1]
10,000, [20,000]
No. of tools
50, [80], [100], [120], [180], [240], [360]
Motor [kW]
26/22
Axis travel [mm]
X: 4,200 / Y: 3,200 / Z: 800 to X: 6,700 / Y: 3,700 / Z: 800
Features

APC, AAC
