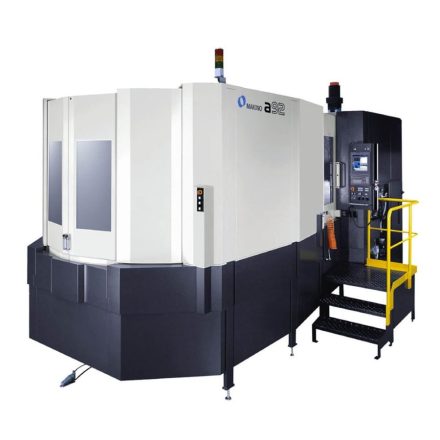

a92 HMC for Construction Equipment Manufacturing

The a92 brings high-efficiency machining to large part production. Designed for unparalleled stiffness and rigidity, the a92 is the ideal machine platform for diesel engine block and construction equipment manufacturing.

Technical Specifications

Pallet:
800 x 1,000 mm
X: 1,520 mm Y: 1,250 mm Z: 1,350 mm

Spindle RPM
10,000 (8K, 20K)
Spindle Taper
CAT50 (HSK-A100 opt)
Rapid Traverse
50,000 mm/min
Cutting Feedrate
50,000 mm/min
Maximum Workpiece
ø1,500 x 1,500 mm
Maximum Payload
2,000 kg (option 3,000 kg)
ATC Capacity
40 (60, 92, 148, 204, 316)
Tool to Tool
1.9 sec
Chip to Chip
5.4 sec
Maximum Tool Diameter
356 mm (40/60 ATC), 350 mm (92 ATC and larger)
Maximum Tool Weight
30 kg (40/60 ATC), 35 kg (92 ATC and larger)

High-thrust forces can be applied throughout the work zone without traditional limitations. This high performance translates to higher quality production, higher versatility and reliability—all contributing to a lower cost of manufacturing for those serving in agriculture, energy and construction equipment manufacturing industries.
