Technical Specifications
Pallet: 400 x 400 mm
X: 560 mm Y: 640 mm Z: 640 mm
Spindle RPM
14,000 rpm (14K High Torque, 20K)
Spindle Taper
CAT40 (HSK63)
Rapid Traverse
60,000 mm/min
Cutting Feedrate
50,000 mm/min
Maximum Workpiece
ø630 mm x 900 mm
Maximum Payload
400 kg
ATC Capacity
60 tools (optional 40, 134, 219, 313)
Tool to Tool
0.9 secs
Chip to Chip
2.2 secs
Maximum Tool Length (Cat)
430 mm
Maximum Tool Length HSK
420 mm
Maximum Tool Diameter
170 mm
Maximum Tool Weight
12 kg
The 14,000-rpm high-speed, high-power spindle features 240 Nm of torque, making it well suited for ferrous and non-ferrous part production.

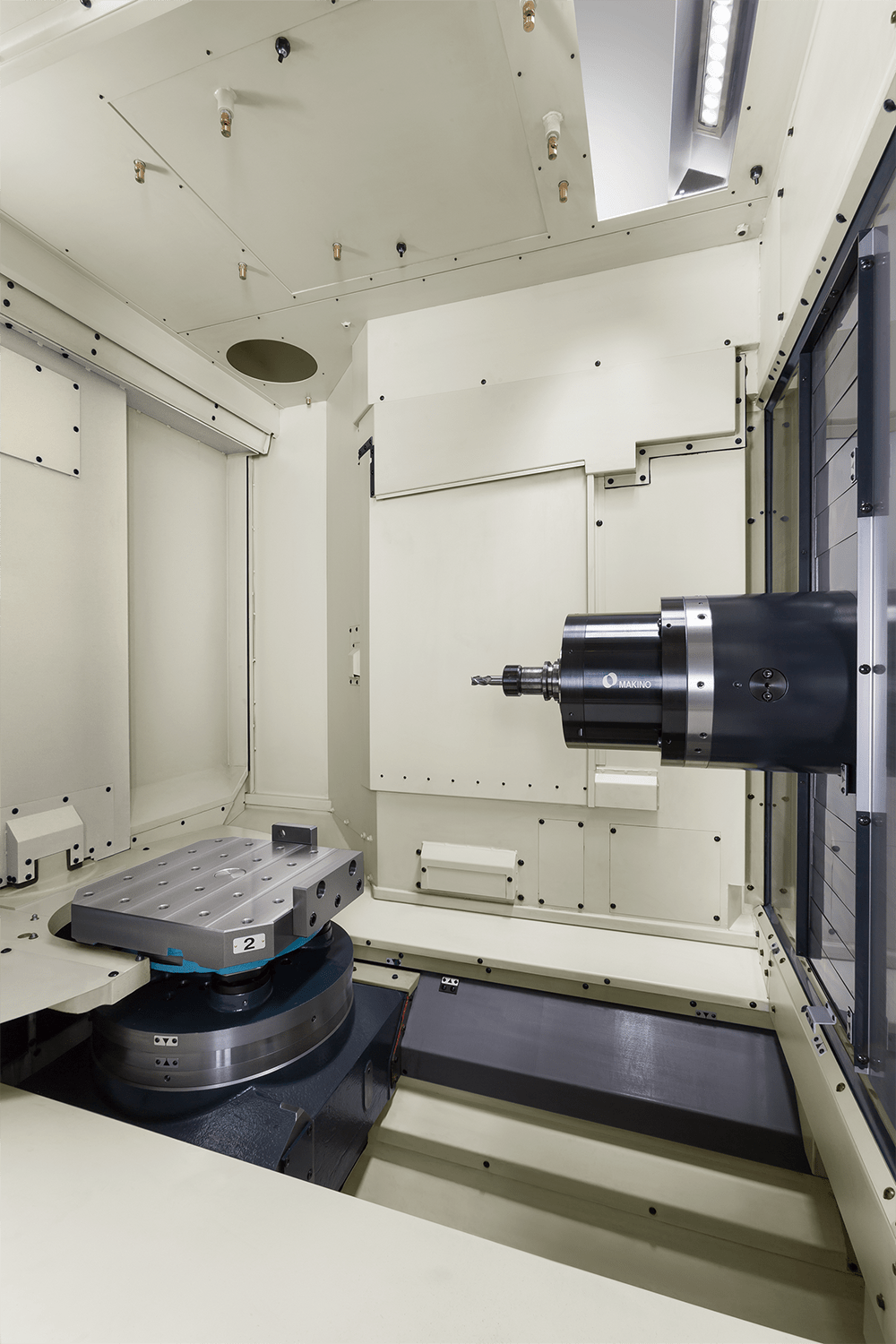

1G axis acceleration and a standard direct-drive motor B-axis minimizes non-cut times, whereas a robust casting design and roller-type linear guides ensure the entire a51nx work envelope can be effectively utilized.
Additionally, one-piece way covers (X and Z) and a dual-supported tool-change arm provide the foundation for industry-leading reliability and high performance machining capability.
