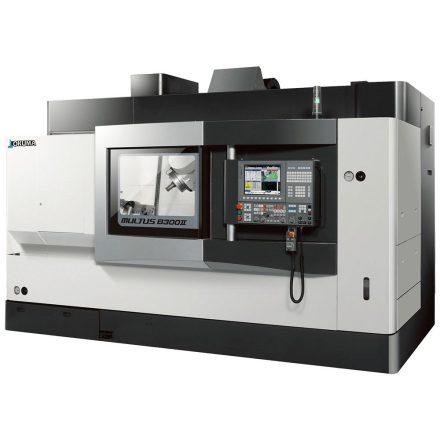

MULTUS B300II

The Okuma MULTUS BII series machines are general purpose multi-function CNC lathes that are designed to reduce set-up time by virtually eliminating repetitive fixturing to improve accuracy and keep non-cutting time to a minimum. They feature the industry’s first Collision Avoidance System software. Combined with Okuma’s OSP control, this software can run the entire machining simulation and catch potential collisions before they create scrap. Thermal-friendly construction assures high accuracy, even in the most complex applications. Options include the W version with sub-spindle, designed to hand the part from one spindle to the other to complete milling and turning operations without changing the part.

Technical Specifications

[ ] Optional

Max. turning diameter [mm]
630
Max. turning length [mm]
900
Spindle speed [min-1]
5,000 [3,800]
No. of tools
20 [40, 60, 120]
Motor [kW]
15/11 [22/15]
Features
W

Download Brochure

Please download the latest brochure for more information & full technical specification
