a71nx

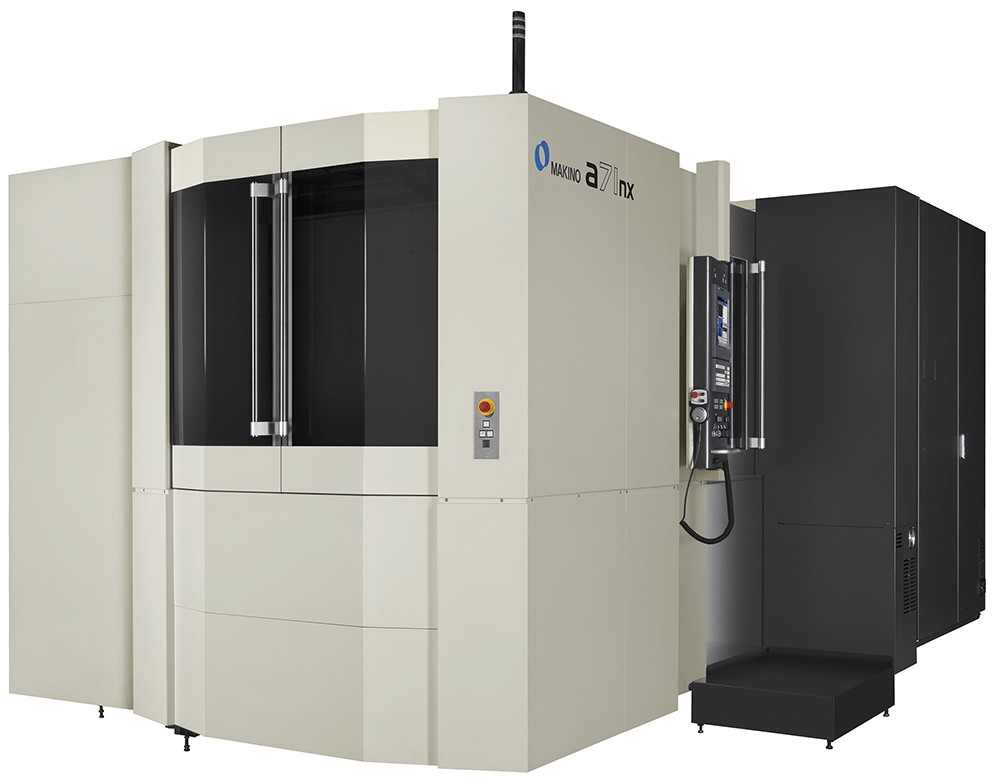

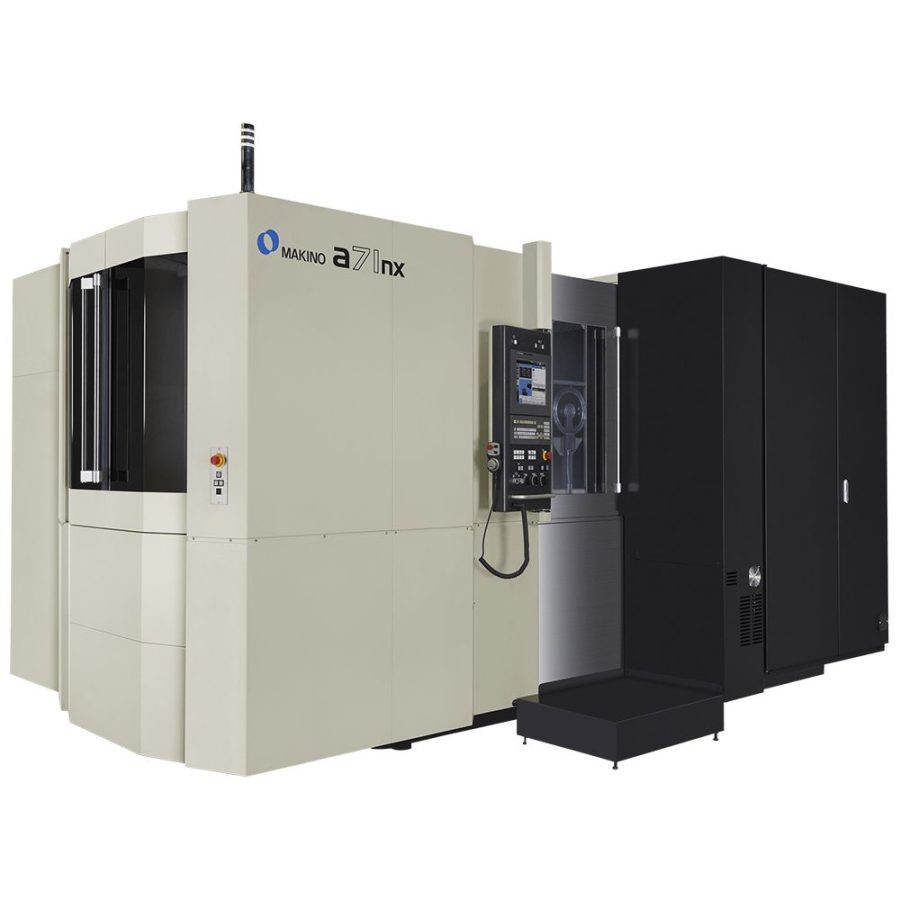

The a71nx is a 500mm, 50-taper production horizontal machining center. The a71nx shares the key nx family machine technologies that take part productivity, accuracy and machine reliability to the next level.  Robust casting design and large roller-type linear guides ensure that the entire a71nx work envelope can be effectively utilized.

Technical Specifications

Pallet:500 x 500 mm
X: 800 mm Y: 750 mm Z: 830 mm

B Axis
360° DD NCRT
Spindle RPM
10,000 rpm
Spindle Taper
CAT50 (HSK-A100 opt)
Rapid Traverse
(X / Y) 50,000 mm/min
(Z) 60,000 mm/min
Cutting Feedrate
50,000 mm/min
Maximum Workpiece
ø900 mm x 1,000 mm
Maximum Payload
1,000 kg
ATC Capacity
60 (136, 187 & 299)
Tool to Tool
1.7 sec (≤ 20kg)
Chip to Chip
3.6 sec (≤ 20kg)
Maximum Tool Diameter
300 mm
Maximum Tool Weight
20 kg (30 kg with limitations)

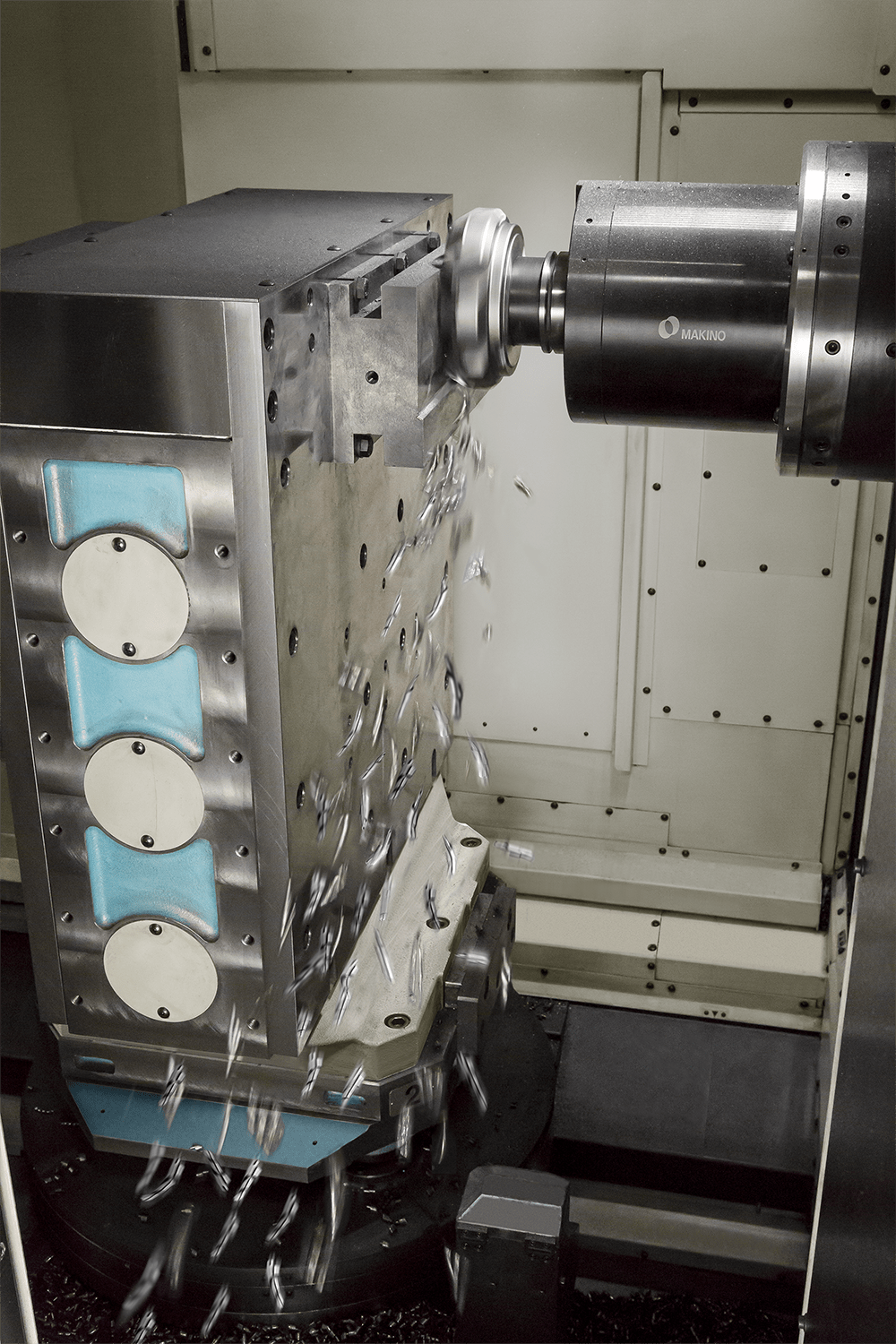

The 10,000-rpm high-speed, high-power spindle features 37kW (49.6HP) of duty rated power and 512 Nm (378 ft-lbs) of duty rated torque. The machines stiffness and rigidity supports thorough utilization of the spindle power and torque to tackle a wide variety of ferrous, non-ferrous and hard metal applications. Multiple technologies on the a71nx reduce non-cut time, providing benefits in automotive and high volume part production. Most notably is the standard direct drive NC rotary table.

The responsiveness of this table eliminates non cut time by reducing 90° indexing time to just 1 second. The DD NC rotary table also supports Makino’s innovative Inertia Active Control (IAC) system. IAC monitors B-axis motor load and estimates total fixture weight. With this information IAC optimizes the motion acceleration and deceleration of the heavily utilized B and Z-axis. The spindle takes full advantage of the duty rated torque to optimize start / stop responsiveness, leading to 20% reduction in tapping time compared to the previous model.

A standard Vision type Broken Tool Sensor resides in the ATC magazine where it automatically confirms the condition of drills, taps and other single point tools. Unique single piece way-cover design, dual-supported tool-change arm and Makino spindle technology provide the foundation for industry-leading reliability.
